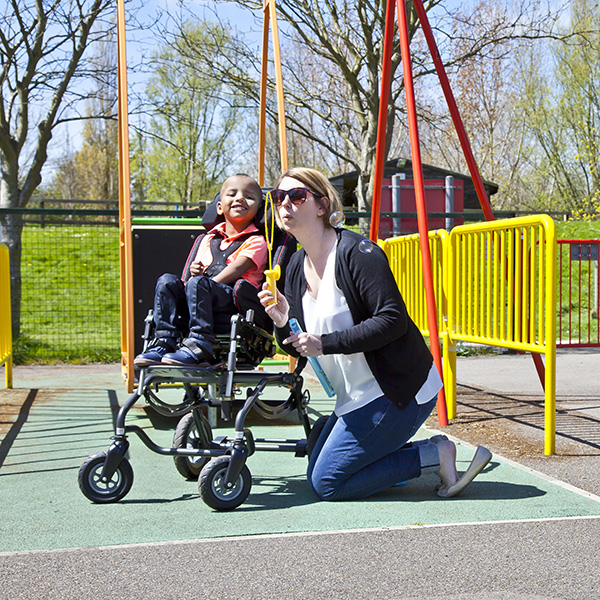

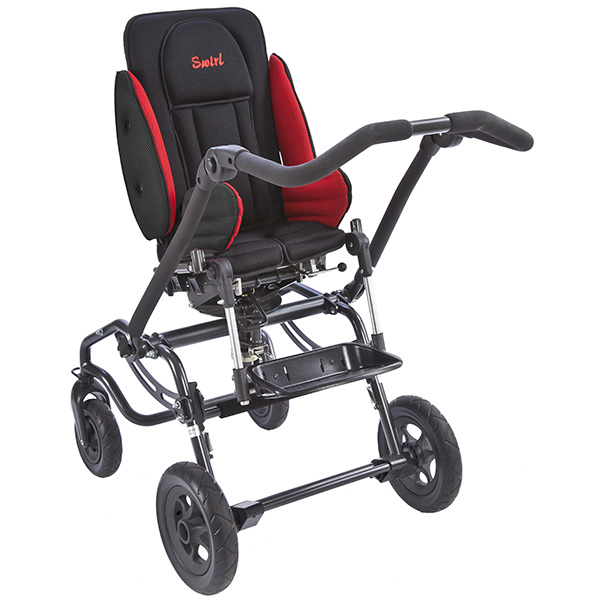

The Snappi Swirl is part of our Snappi range of pushchairs utilising the popular Snappi seat in a 360° rotating chassis. The Snappi Swirl features an innovative rotating mechanism enabling the seat to rotate easily from forward (world-facing) to rearward (parent-facing), and vice versa, with your child still in the buggy. This allows for a smooth, stress-free transition for both parent and child whilst ensuring both your own and your child’s ever-changing needs are catered for.
Buggy rotates 360° with the child still in the seat.
Height and angle adjustable push handles.
Tilt in space, without fixed positions, of 0 - 40°.
Highly adjustable in order to ensure both maximum growth and ideal seating position.
Soft touch, easy-to-operate, pin-lock brake. Hub brake option also available.

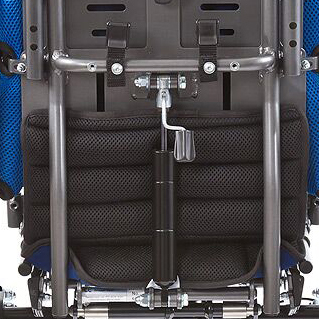

Back recline, without fixed positions, of 90 - 135°. Dynamic option available.

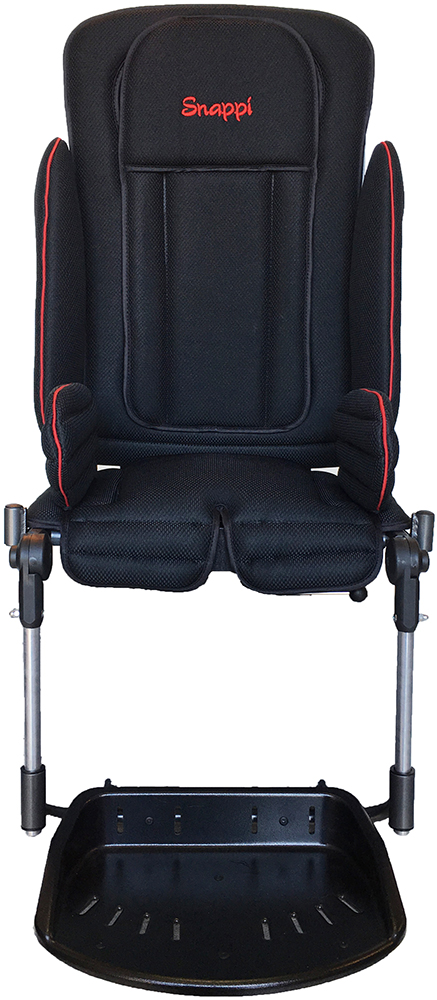

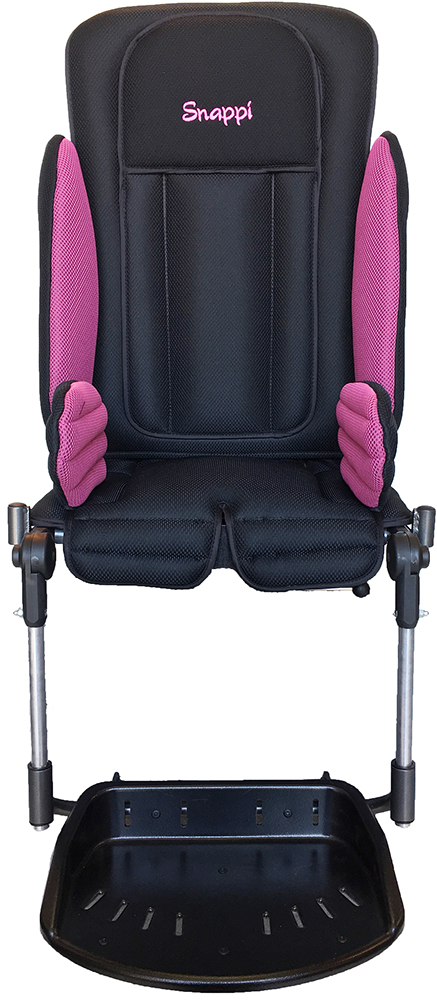

Soft, breathable fabric available in seven, different colour options.
Adjustable knee angle.

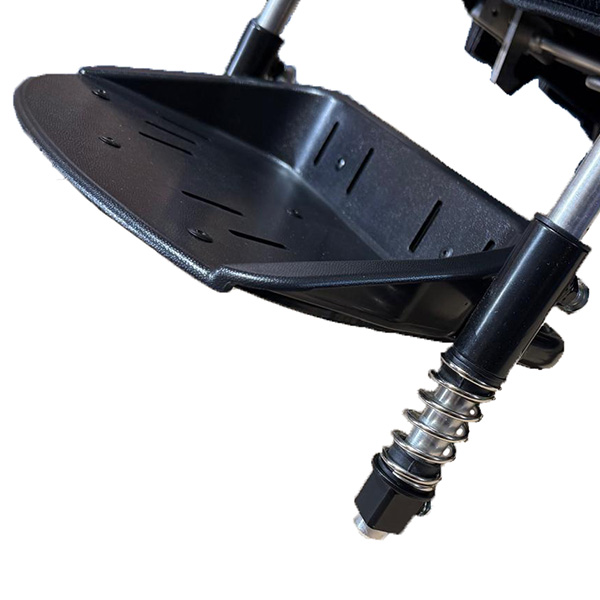

Height and angle adjustable flip-up footrest. Dynamic option available.
Swivelling front castors. Front locking castors option available.
Front and rear transit brackets, fitted as standard. Crash-tested (forward facing position only) according to ISO 7176-19.
Comprehensive range of accessories available including custom accessories and bespoke modifications.
Click a category heading below to view and download the latest manuals, assessment forms, parts lists, brochures & certificates of conformity for the Snappi Swirl Pushchair.
All sizes and weights are given as a guide. Tendercare Ltd reserves the right to amend specifications at any time as part of their product development program.

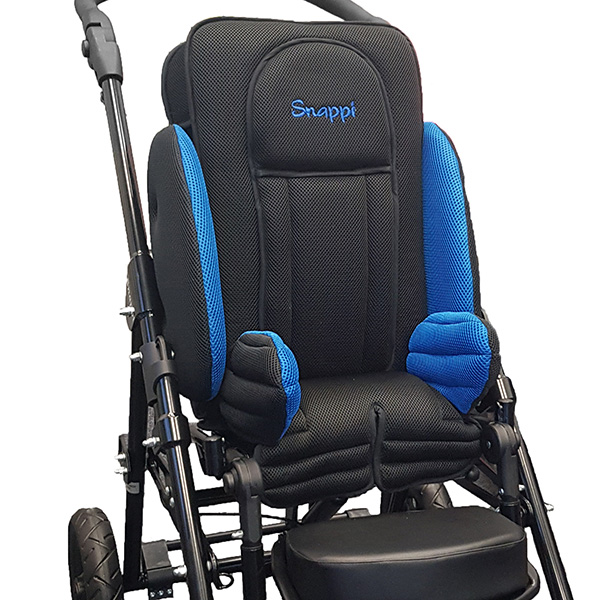

| Snappi Size 1 With Seat Minimiser Fitted | Snappi Size 1 | |
|---|---|---|
| Seat Depth | 140-310mm | 195-310mm |
| Seat Width | 170-290mm | 170-290mm |
| Backrest Height | 475-675mm | 500-675mm |
| Footrest Height | 120-280mm | 150-280mm |
| Seat Back Recline | 90-135° | 90-135° |
| Seat Tilt | 0-40° | 0-40° |

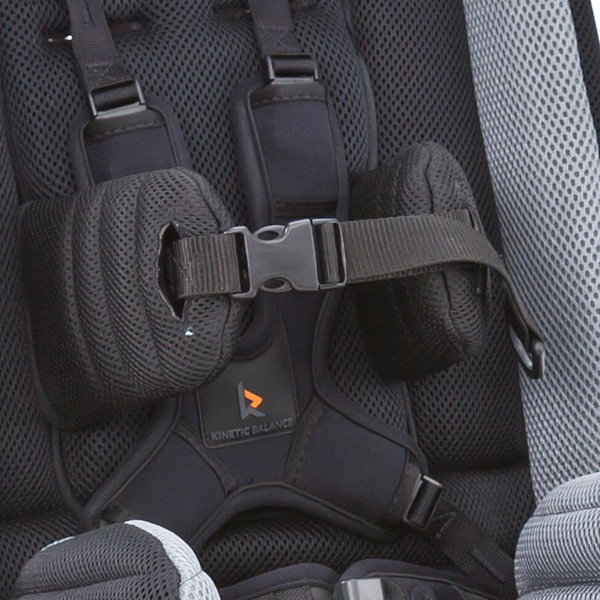

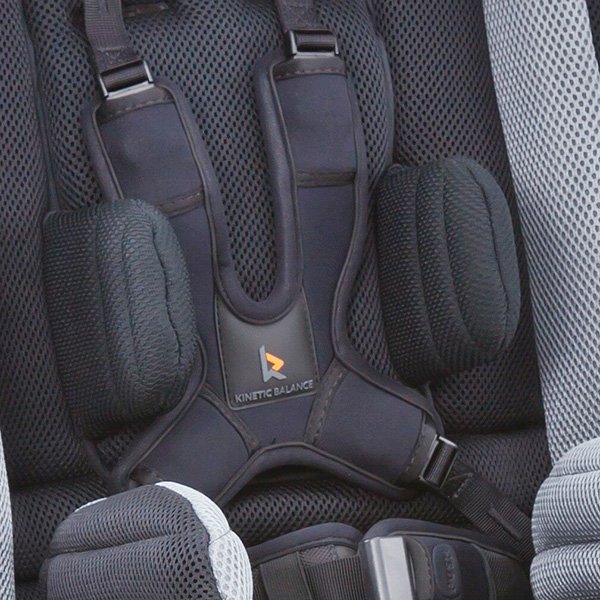

| Minimum - Maximum Width of Lateral Trunk Supports (if fitted) | 140mm - 230mm | 140mm - 230mm (standard size 1) or 200 - 280mm (size 1 wider style. Please note, laterals can only go as wide as the seat so at the maximum the laterals will be by the side wings) |
| Seat Plane to Floor Height (when tilt in space is at 90 degrees) | 550mm (front & 535mm (back) | 550mm (front & 535mm (back) |
| Adjustable Push Handle Range (Min - Max) | 605-1125mm | 605-1125mm |
| Diameter of Front Swivelling Castor | 180mm | 180mm |
| Diameter of Rear Wheel | 250mm | 250mm |
| Weight of Pushchair | 23.5kg | 23kg |
| Weight of Seat | 8kg | 7.5kg |
| Maximum Weight Capacity (i.e. the weight of the occupant, their accessories e.g medical equipment and any accessories of the parent e.g. shopping) | 40kg | 40kg | Pushchair Dimensions (approx. will vary depending on the back height your seat is set to) | 985mm x 583mm x 984mm (length x width x height) | 985mm x 583mm x 984mm (length x width x height) | Folded Pushchair Dimensions (approx. will vary depending on the back height your seat is set to) | 622mm x 546mm x 400mm (length x width x height) | 622mm x 546mm x 400mm (length x width x height) |
Please be advised, these video guides are designed to be a visual aid used in conjunction with your user manual. They are NOT a substitute for reading the manual / manuals.
This video guide will show you how to fold and unfold a Snappi Swirl.
This video guide will show you how to fold and unfold a Snappi Swirl.
This video guide will show you how to rotate the seat on a Snappi Swirl pushchair. Although there isn't a child in this video, you can rotate the seat with the child still in the buggy.
This video guide will show you how to fit and remove your Snappi seat from your Swirl chassis.
This video guide will show you how to use tilt in space on a Snappi Swirl pushchair.
This video will show you how to use back recline on a Snappi Swirl (shot with a Snappi chassis but the seat is the same so it will work in the exact same way for your Snappi Swirl).
This video will show you how to adjust the back height on a Snappi Swirl (shot with a Snappi chassis but the seat is the same so it will work in the exact same way for your Snappi Swirl).
This video will show you how to adjust the seat depth on a Snappi Swirl (shot with a Snappi chassis but the seat is the same so it will work in the exact same way for your Snappi Swirl).
This video will show you how to adjust the hip guides on a Snappi Swirl (shot with a Snappi chassis but the seat is the same so it will work in the exact same way for your Snappi Swirl).
This video will show you how to adjust a Snappi Swirl footrest (shot with a Snappi chassis but the seat is the same so it will work in the exact same way for your Snappi Swirl).

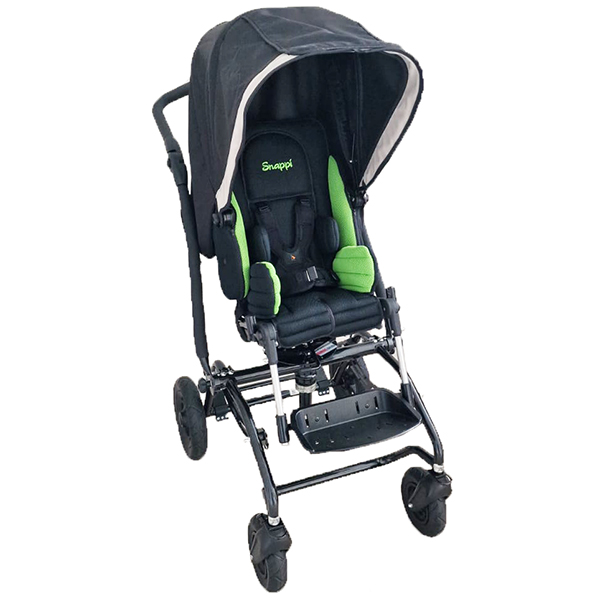

This video will show you how to fit a Snappi Swirl sunhood. Please note, this video relates to the new style / universal Snappi sunhood which fits all sizes of Snappi seat.

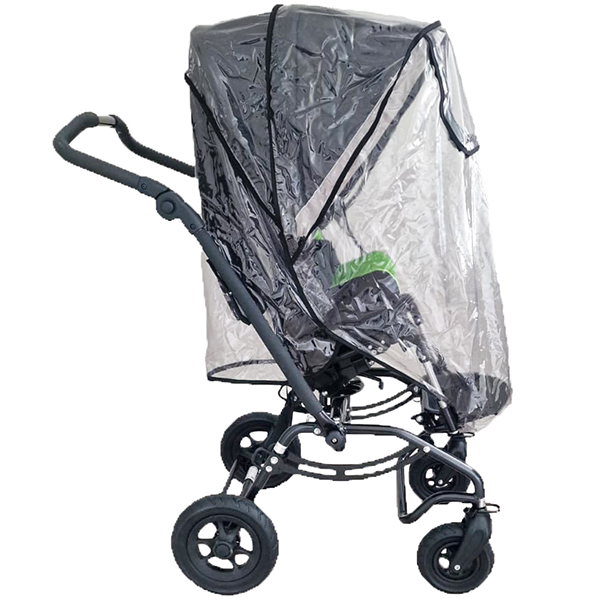

This video will show you how to fit your Snappi Swirl rainshield to the Snappi sunhood. Please note, this video relates to the new style / universal Snappi sunhood and is filmed using a Snappi seat on a Snappi chassis.
This video will show you how to adjust the sunhood brackets on your Snappi universal sunhood. Please note, this relates to a size 1 pushchair.
This video will show you how to adjust the sunhood brackets on your Snappi universal sunhood. Please note, this relates to a size 2 pushchair.
This video will show you how to fit and remove a Snappi Swirl sunhood. Please note, this video relates to the old style / size specific version of the sunhood and is filmed using a Snappi seat on a Snappi chassis.
This video will show you how to fit your Snappi Swirl rainshield to the Snappi sunhood. Please note, this video relates to the old style / size specific version of the sunhood and is filmed using a Snappi seat on a Snappi chassis.

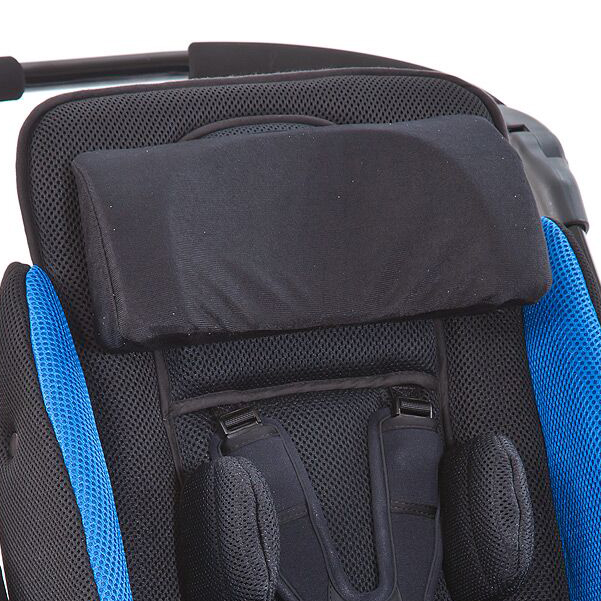

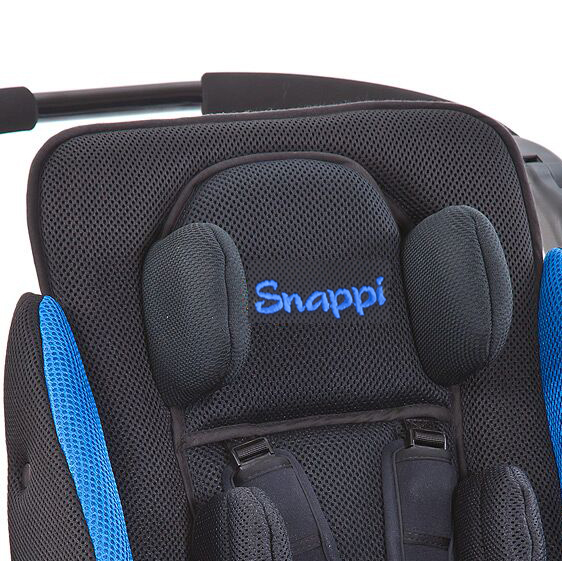

This video will show you how to fit a Snappi headrest (shot with a Snappi chassis but the seat is the same so it will work in the exact same way for your Snappi Swirl).
This video will show you how to fit lateral supports to your Snappi Swirl (shot with a Snappi chassis but the seat is the same so it will work in the exact same way for your Snappi Swirl).

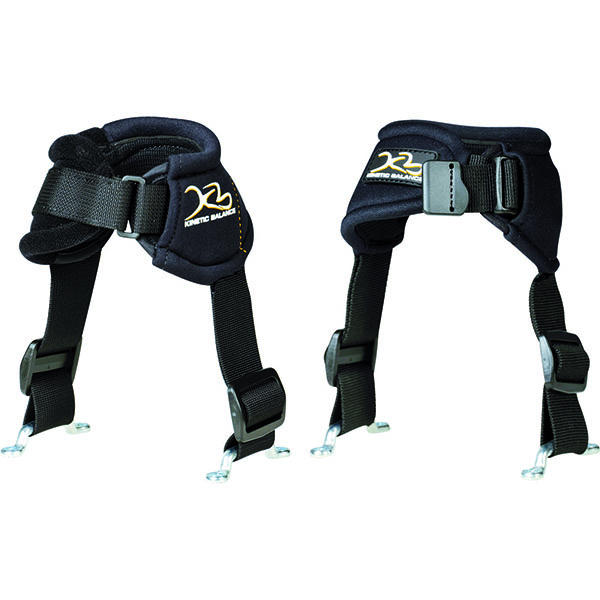

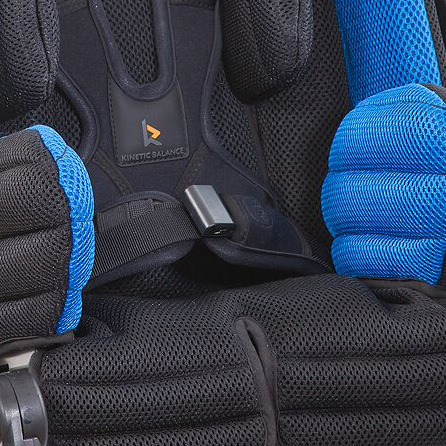

This video will show you how to fit a 2 point pelvic belt to your Snappi Swirl (shot with a Snappi chassis but the seat is the same so it will work in the exact same way for your Snappi Swirl).

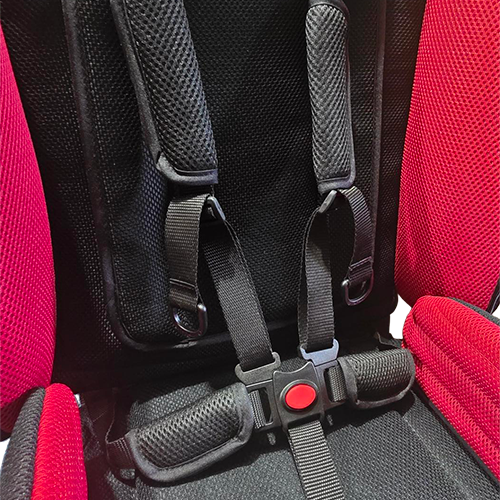

This video will show you how to fit a 4 point pelvic belt to your Snappi Swirl (shot with a Snappi chassis but the seat is the same so it will work in the exact same way for your Snappi Swirl).
This video will show you how to fit and remove Snappi covers (shot with a Snappi chassis but the seat is the same so it will work in the exact same way for your Snappi Swirl).
This video will show you how to fit a Swirl shopping basket.

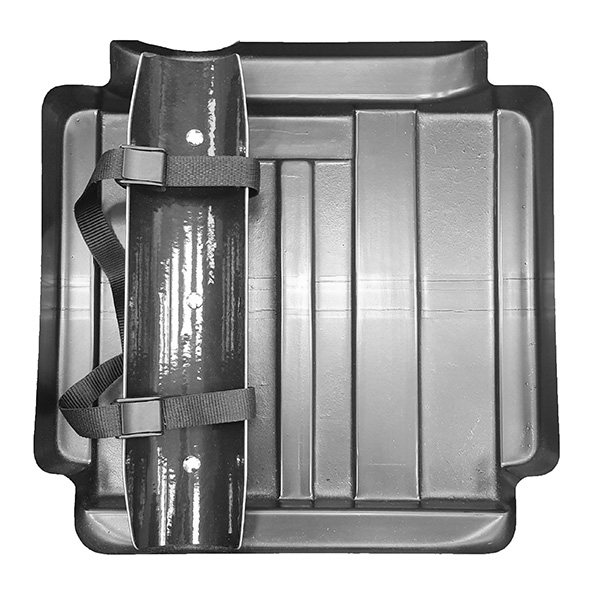

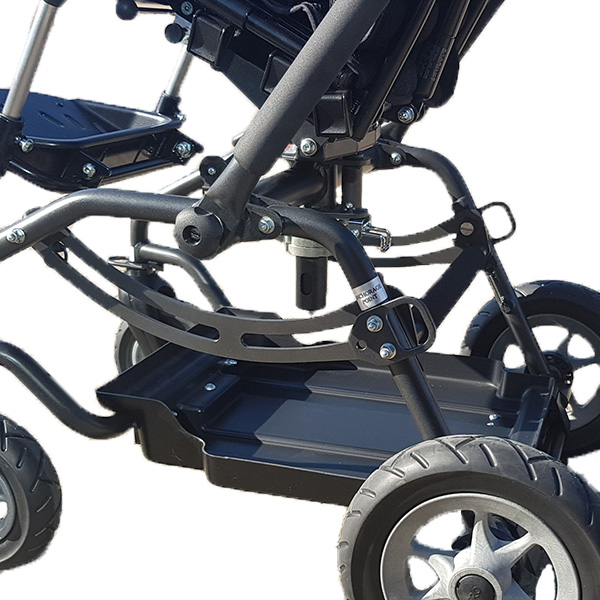

This video will show you how to fit a Swirl equipment tray.
