The Modular Seating System delivers exceptional versatility in postural management, ensuring optimal comfort and support. Featuring one of the widest ranges of growth adjustments on the market, this seating solution adapts seamlessly to the user over time to promote long-term well-being.

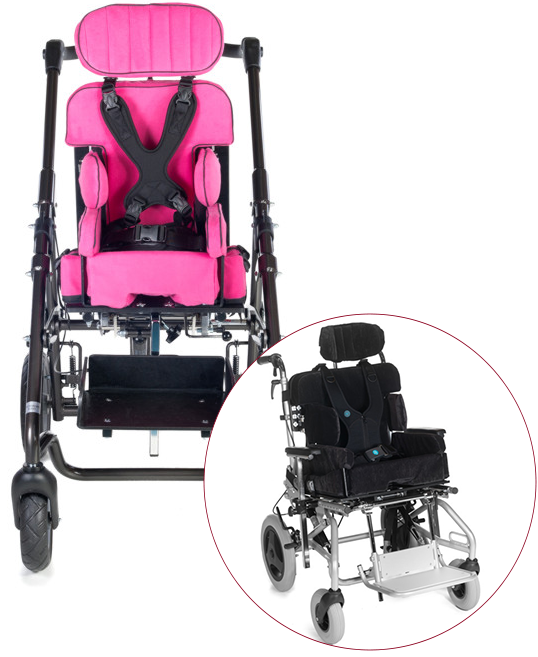

Unlike many alternatives, this system can (depending on the interface) simultaneously fit to both a manual and a power chair, eliminating the need and expense of purchasing two separate seats.

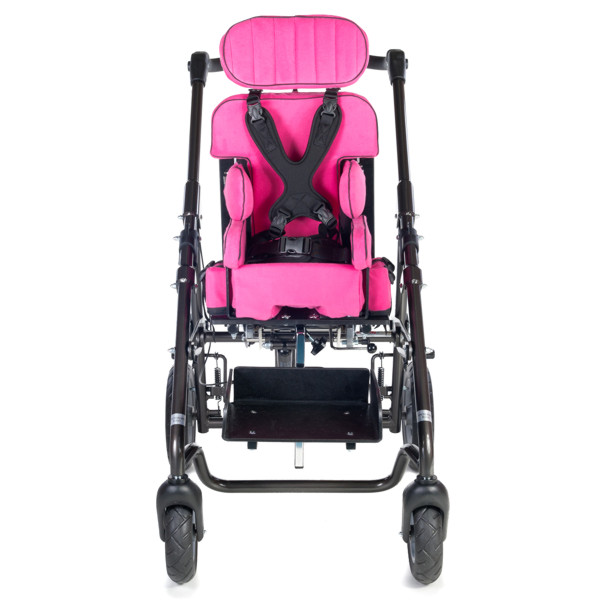

Fully adjustable headrest; shaped and padded for comfort. Different styles & custom shapes available.
Fully customisable to client's starting measurements with 3” of growth in height, width and seat depth.
Lateral trunk supports with option of swingaway laterals on either one or both sides.
Height adjustable sacral pad.
Different footrest styles available.
Compatible with third party headrests.
Contoured backrest.
Ramped seat cushion as standard with option for steeper angle.
Full length hip guides.
Can be fitted to any base including our Snappi, Cloud and Swirl chassis as well as third party bases like the neo and discovery.
Fully adjustable pommel and knee blocks available.
Available in a variety of fabrics (including soft touch or wipeable materials) and colour combinations (including a two-tone colour option) to enable customisation to each user's needs and preferences.
Unlike many alternatives, this system can (depending on the interface) simultaneously fit to both a manual and a power chair, eliminating the need and expense of purchasing two separate seats.
Preview your chair design below! You can keep it simple with a single colour or create a custom two-tone look. Just remember: if you choose a two-tone design, both colours need to be from the same fabric range.

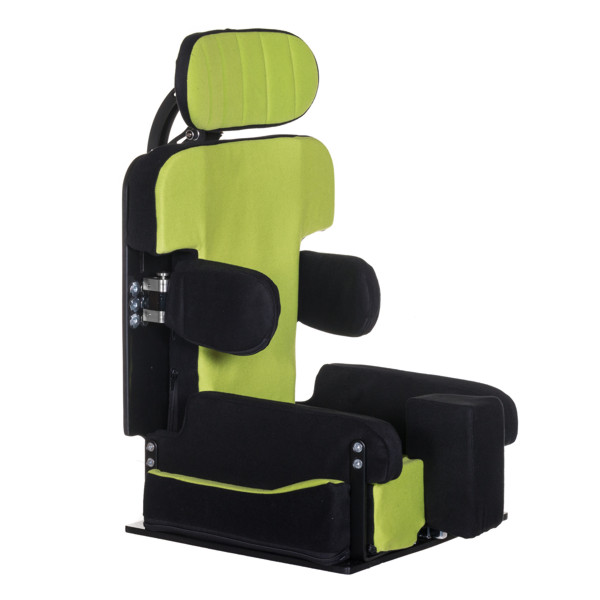

See it in real life: Modular seat configured in Agua Stirata Lime Green (primary colour) and Black (secondary colour).
Click a category heading below to view and download the latest manuals, assessment forms, parts lists, brochures & certificates of conformity for the Modular seating system.
The below sizes are for the standard 'Off the Shelf' Modular Seating Systems. Bespoke Modular Seating Systems are available and are manufactured to client specific starting measurements. All sizes and weights are given as a guide. Tendercare Ltd reserves the right to amend specifications at any time as part of their product development program.
| Off The Shelf Specifications (bespoke sizing available) | Size 1 | Size 2 | Size 3 |
|---|---|---|---|
| Hip Width | 190 - 330mm | 230 - 390mm | 280 - 440mm |
| Thigh Length | 250 - 325mm | 315 - 390mm | 420 - 495mm |
| Seat to Top of Shoulder | 350 - 425mm | 410 - 485mm | 490 - 565mm |
| Trunk Width | 160 - 290mm | 180 - 305mm | 230 - 320mm |
| Height | Depth | Width | Angle | |
|---|---|---|---|---|
| Multi Positional Adjustable Headrest | 0 - 310mm | -200 - 250 | 30mm left / right | +/- 30° vertical +/- 10° |
| Fixed Headrest | 0 - 230mm | 0 - 50mm | - | - |
| Laterals | 0 - 200mm | 0 - 60mm | 0 - 60mm left, 0 - 60mm right | - |
| Pommel | - | 0 - 60mm | - | - |
| Knee Blocks | - | 0 - 60mm | - | - |
| Single Stem Footrest | Leg Drop 120 - 500mm | 0 - 120mm | - | - |
| Independent Angle Adjustable Footrests | Leg Drop 120 - 500mm each side | 0 - 120mm each side | 0 - 120 left, 0 - 120 right | +/- 30° each side |
Please be advised, these video guides are designed to be a visual aid used in conjunction with your user manual. They are NOT a substitute for reading the manual / manuals.
This video will show you how to adjust a fixed style headrest on a Modular seating system.
This video will show you how to adjust a fixed style headrest on a Modular seating system.
This video will show you how to adjust the height and depth of a multi positional headrest on a Modular seating system.
This video will show you how to adjust the width of a head pad on a modular seating system.
This video will show you how to adjust the back height on a Modular seating system.
This video will show you how to fit a pommel to your Modular seating system.
This video will show you how to adjust the seat depth on a Modular seating system.
This video will show you how to adjust the hip guides on a modular seating system.
This video will show you how to adjust the height of a footplate on a Modular seating system.
This video will show you how to adjust the angle of a footrest sandal on a independent footrest.
This video will show you how to adjust the height of a foot sandal on a independent footrest.
This video will show you how to adjust the depth of a foot sandal on a independent footrest.
This video will show you how to adjust the retaining brackets on a modular seating system.
