Hercules Small

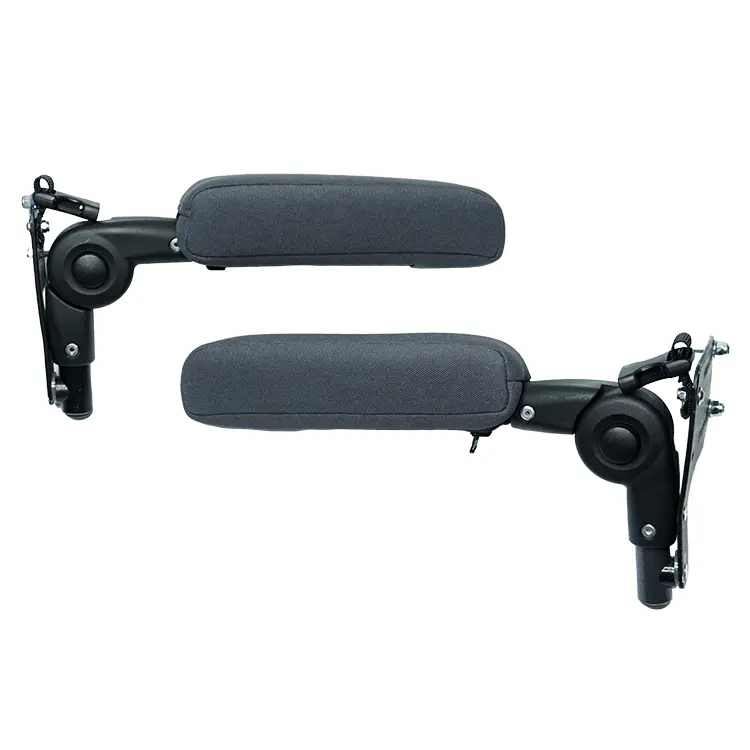

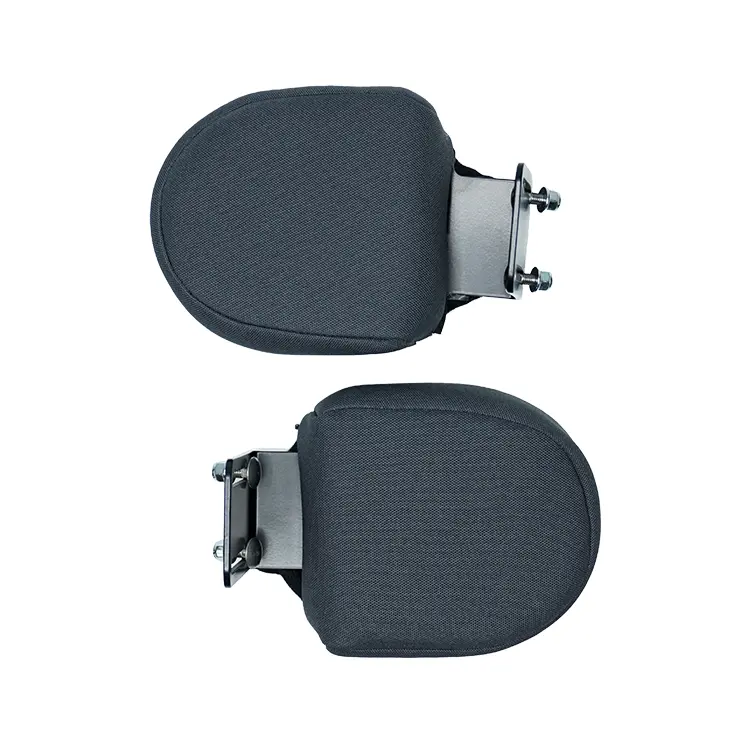

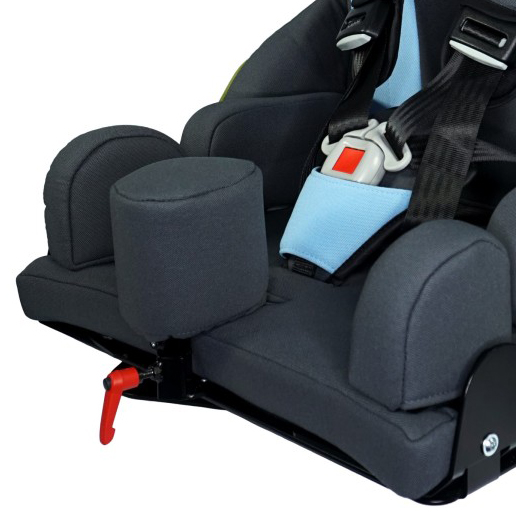

The Hercules Small is an exciting addition to our range of car seats. This car seat has been specifically designed to combine higher level of support with the practicality of a car seat. In order to achieve the necessary level of support required for each user, a wider variety of postural accessories are available including a pommel, lateral trunk supports and armrests as well as functional accessories like a swivel base and a tilting plate.

Key Features

Key features of the Hercules Small:

Headrest: Independently adjustable in width and height. Can also be depth adjustable (by adding additional accessories) to help prevent sensory overload.
Backrest Height: The backrest can be continuously adjusted in height by 24 cm, allowing it to be adapted to the child's growth at any time. The head is held in an optimal position by the continuously and asynchronously adjustable headrest.

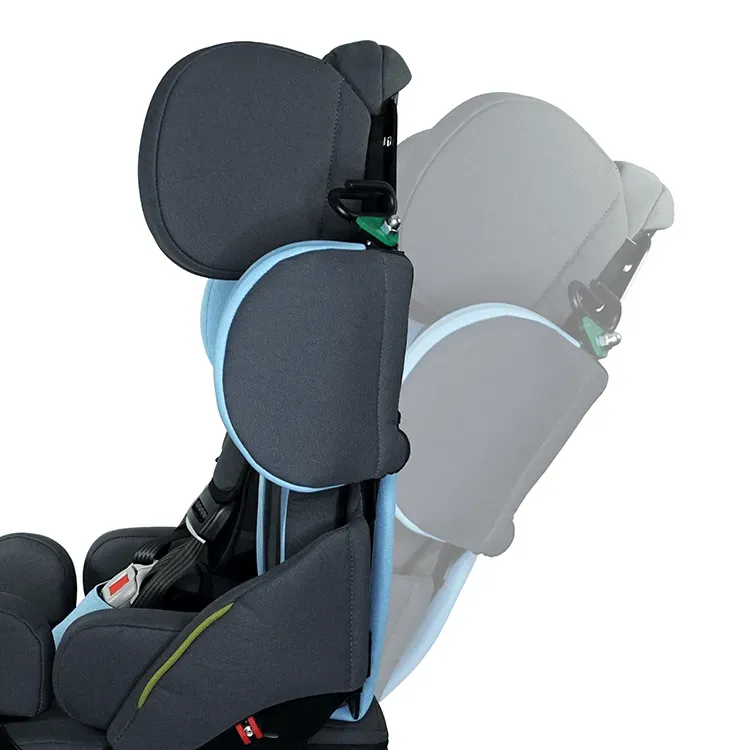

Adjustable Back Angle: by using two quick handles - without any tools at all: simply use the red quickrelease clamps.

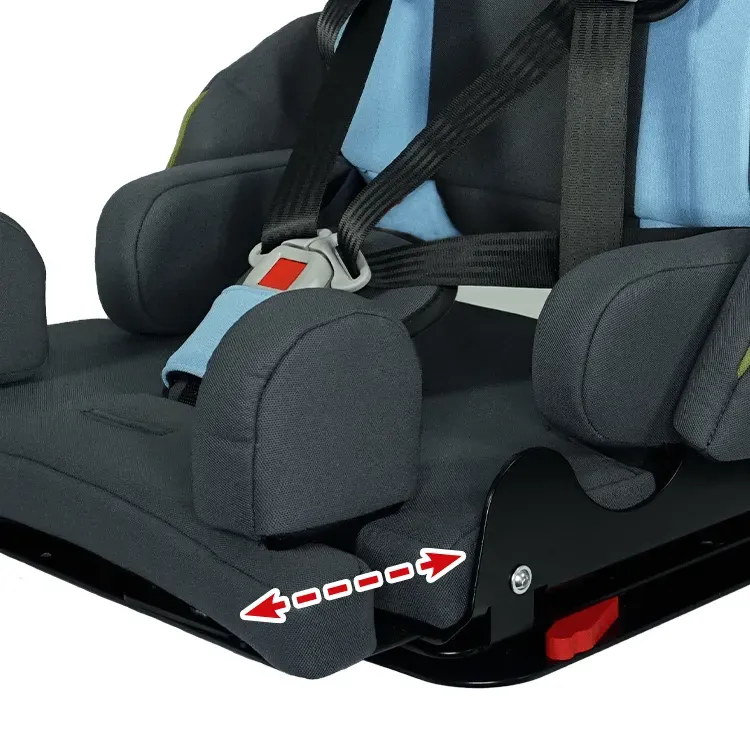

Adjustable seat depth: infinitely adjustable by 8 cm for individual adaptation to the growth of the child.
Leg guide: Narrow and wide users with seat width from 21 - 33 cm / 8.7 - 13" sit well supported at all times. The pelvic and leg guides that grow with the patient are stepless and individually adjustable for each side - also asynchronous.
Side Impact Protectors: The Side impact protectors offer particularly good side impact protection - they absorb the forces in the best possible way, especially in the head and shoulder area. Tested according to the latest safety standard (R129).

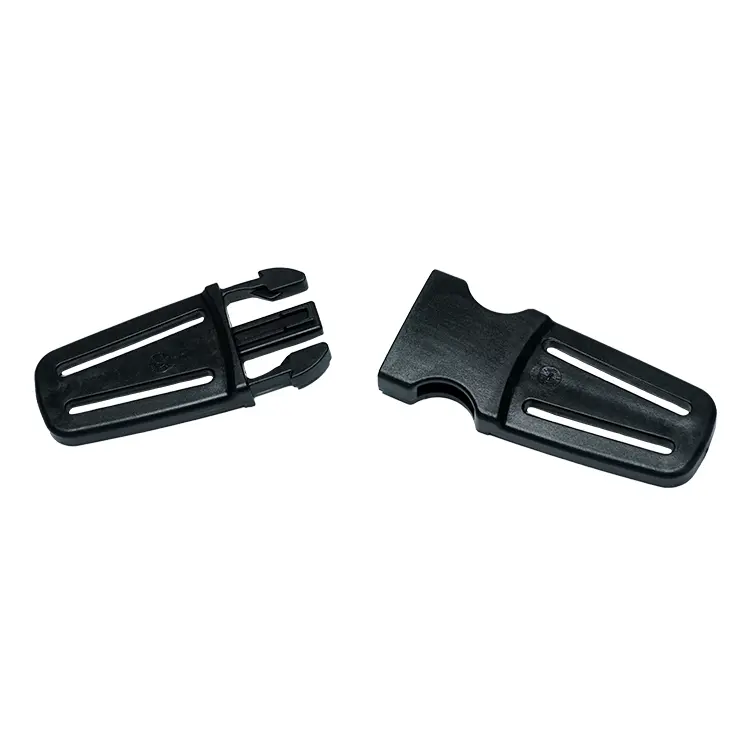

Belt Buckle & Shield Pad: Shoulder straps can be clicked individually in the quick-release buckle, which means easier buckling for the parent or companion.
R129/03 Crash Tested: tested in accordance with the newest R129/03 standard which considers both frontal and side impacts, offers a high level of safety and effective protection your child.

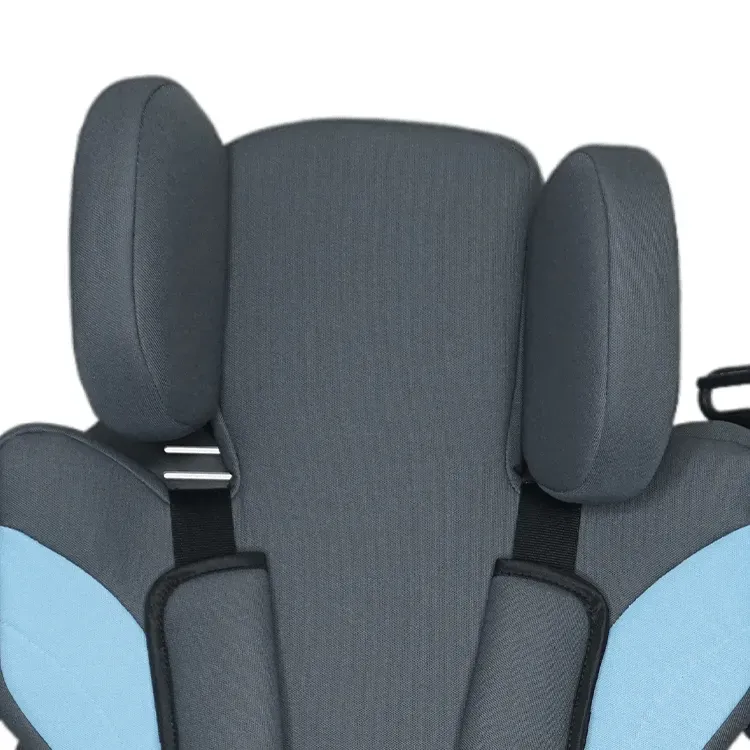

Asynchronously Adjustable Headrest

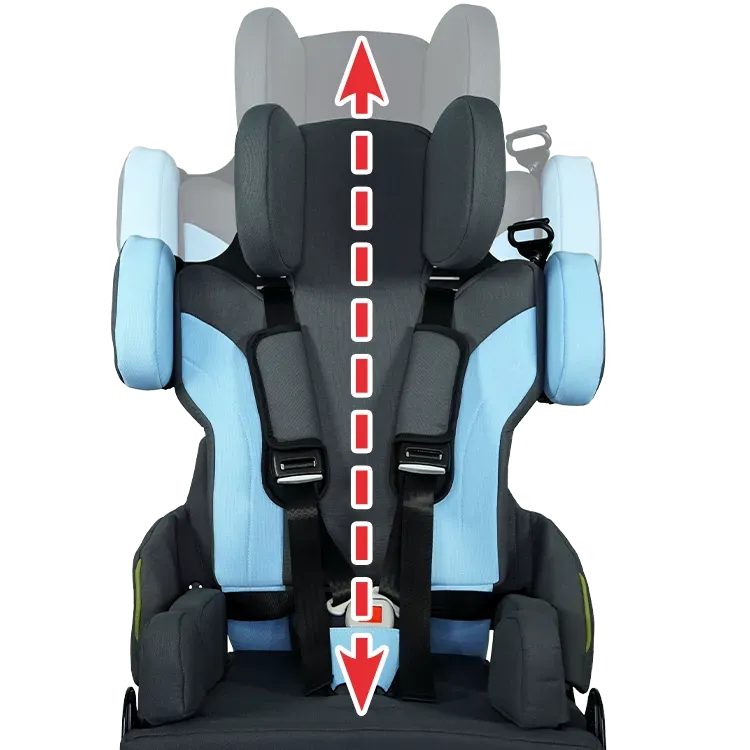

Backrest Height

Adjustable Back Angle

Adjustable Seat Depth

Technical / Sizing Information

All sizes and weights are given as a guide. Tendercare Ltd reserves the right to amend specifications at any time as part of their product development program.

Dimensions & Weights	Hercules Small
Seat depth	31 - 39 cm / 12.2 - 15.4"
Seat width	21 - 33 cm / 8.3 - 13"
Backrest height (seat inside)	57 - 80 cm / 22.4 - 31.5"
Back width (seat)	45 cm / 17.7"
Head width	11.5 - 20 cm / 4.5 - 7.9"
Shoulder height (belt guide)	33 - 60 cm / 13 - 23.6"
Shoulder width	45 cm / 17.7"
Shoulder width with shoulder pad	34.5 cm / 13.6"
Knee width	23 - 36 cm / 9.1 - 14.2"
Back angle	90° - 145°
Seat tilt (basic model)	0°
Seat tilt (with tilt plate 10°)	0° / 2.5° / 5° / 7.5° / 10°
Seat tilt (with tilt plate 20°)	10° / 12.5° / 15° / 17.5° / 20°
Lower leg length (with footrest)	16 - 42 cm / 6.3 - 16.5"
Height lateral trunk support (upper edge)	28 - 34 cm / 11 - 13.4"
Distance lateral trunk support	20 - 33 cm / 7.9 - 13"
Armrest height (upper edge)	15.5 - 31 cm / 6.1 - 12.2"
Armrests width	24 - 35 cm / 9.4 - 13.8"
Underarm support (top edge)	19.5 - 30 cm / 7.7 - 11.8"
Underarm support cut-out (depth)	11 - 23 cm / 4.3 - 9.1"
Underarm support cut-out width	30 cm / 11.8"
Abduction block (W x H x D)	7 x 10 x 10 cm / 2.8 x 3.9 x 3.9"
Max overall dimensions (w x h x d)	55 x 85 x 34 cm / 21.7 x 33.5 x 13.4"
Min. folding dimensions (w x h x d)	55 x 23 x 60 cm / 21.7 x 9.1 x 23.6"
Weight of the seat (basic model)	11.6 kg / 25.6 lbs
User height	100 - 150 cm / 40 - 59"
User weight	18.1 - 50 kg / 40 - 110.2 lbs

31 - 39 cm / 12.2 - 15.4"

21 - 33 cm / 8.3 - 13"

57 - 80 cm / 22.4 - 31.5"

45 cm / 17.7"

11.5 - 20 cm / 4.5 - 7.9"

33 - 60 cm / 13 - 23.6"

45 cm / 17.7"

34.5 cm / 13.6"

23 - 36 cm / 9.1 - 14.2"

90° - 145°

0°

0° / 2.5° / 5° / 7.5° / 10°

10° / 12.5° / 15° / 17.5° / 20°

16 - 42 cm / 6.3 - 16.5"

28 - 34 cm / 11 - 13.4"

20 - 33 cm / 7.9 - 13"

15.5 - 31 cm / 6.1 - 12.2"

24 - 35 cm / 9.4 - 13.8"

19.5 - 30 cm / 7.7 - 11.8"

11 - 23 cm / 4.3 - 9.1"

30 cm / 11.8"

7 x 10 x 10 cm / 2.8 x 3.9 x 3.9"

55 x 85 x 34 cm / 21.7 x 33.5 x 13.4"

55 x 23 x 60 cm / 21.7 x 9.1 x 23.6"

11.6 kg / 25.6 lbs

100 - 150 cm / 40 - 59"

18.1 - 50 kg / 40 - 110.2 lbs

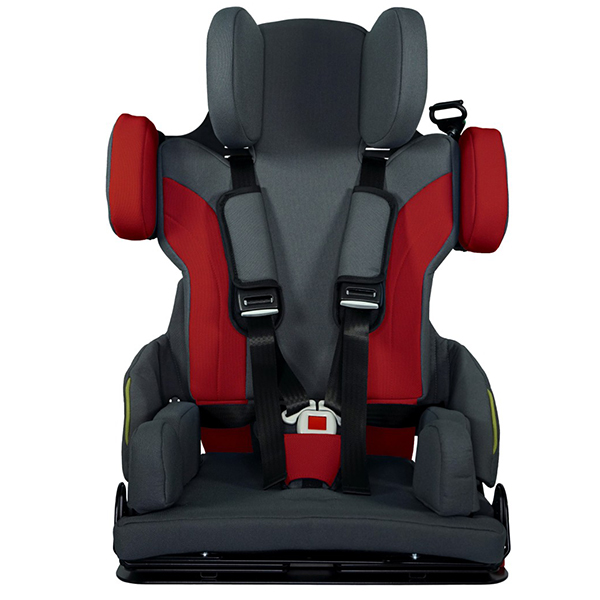

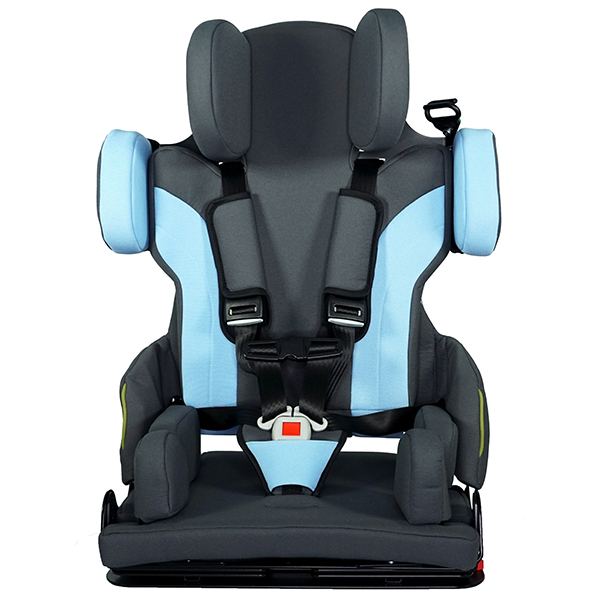

Colour Options

Hercules Small Downloads

Click a category heading below to view and download the latest manuals, assessment forms, parts lists, brochures & certificates of conformity for the Hercules Small car seat.

Assessment Form

▾

📋

Assessment & Order Form

Download

User Manuals & Fitting Guides

▾

📄

User Manual

Download

📄

Armrests and Table Instructions

Download

📄

Belt Buckle Safety Pad incl. Magnetic Lock Instructions

Download

📄

Incontinence Cover Instructions

Download

Parts Lists / Diagrams

▾

🛠️

Spare Parts List

Download

Brochures

▾

📕

Brochure

Download

Certificates of Conformity

▾

⚙️

EU MDR CE Declaration of Conformity

Download

Optional Accessories

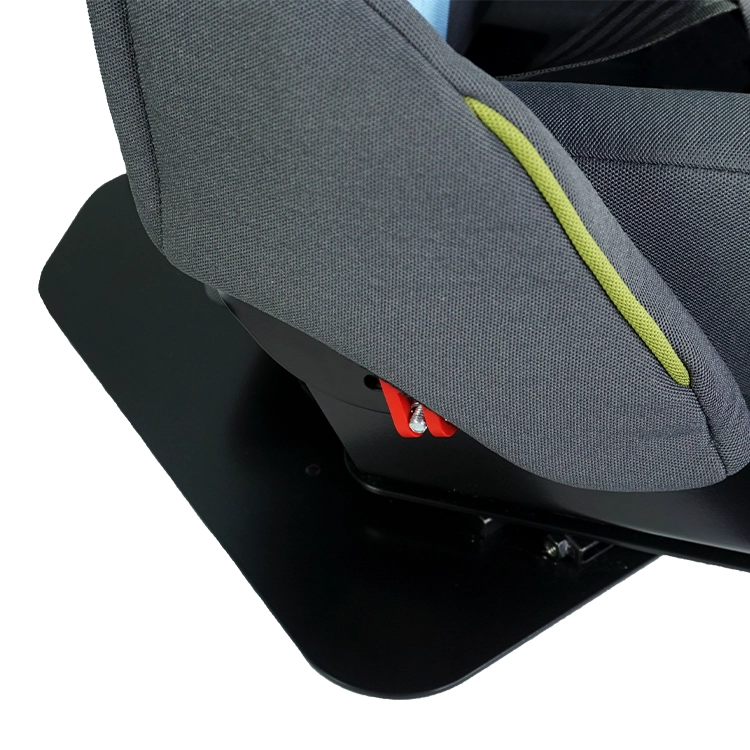

ISOFIX Swivel Base — To enable smooth, easier transfers.

Swivel Base Cushion — To protect the car's own seats and aid swivel function.

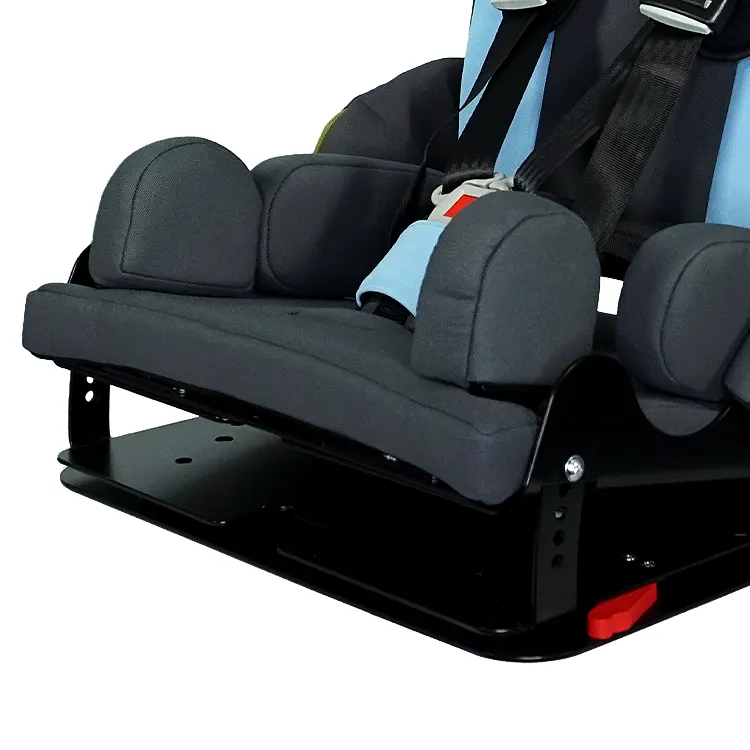

Tilt Base 10° — The tilt base 10° allows seat tilting in several positions: 0° / 2,5° / 5° / 7,5° / 10°.

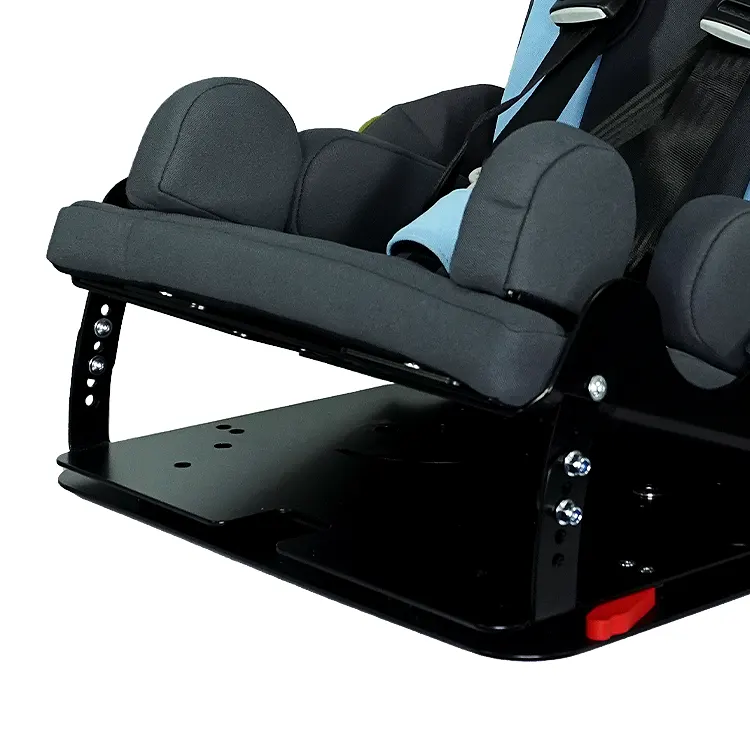

Tilt Base 20° Extension — Tilt base extension (requires tilt base) enables tilting of 12,5° / 15° / 17,5° / 20°.

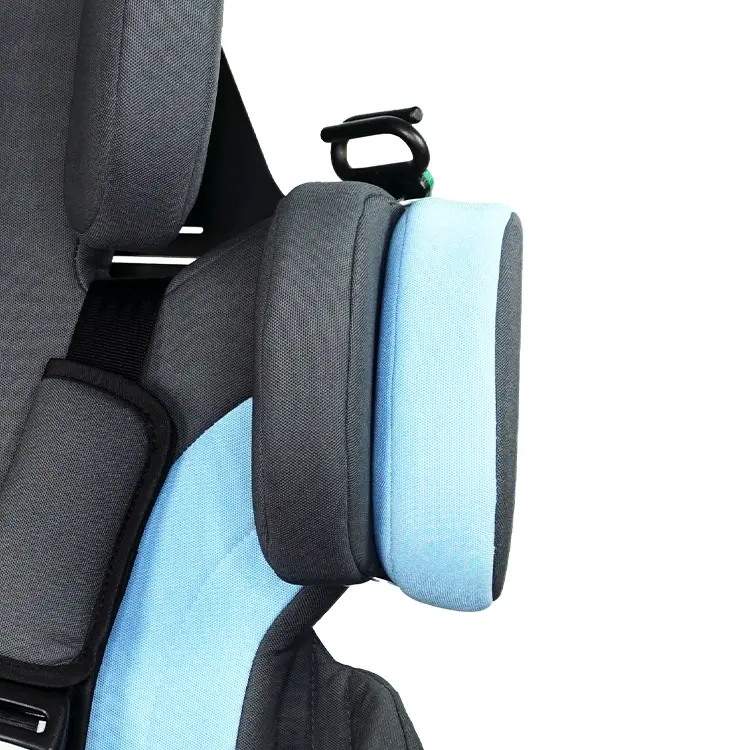

Shoulder Pads — Reducing shoulder width from 45 cm to 34,5 cm / 17.7“ to 13.5“.

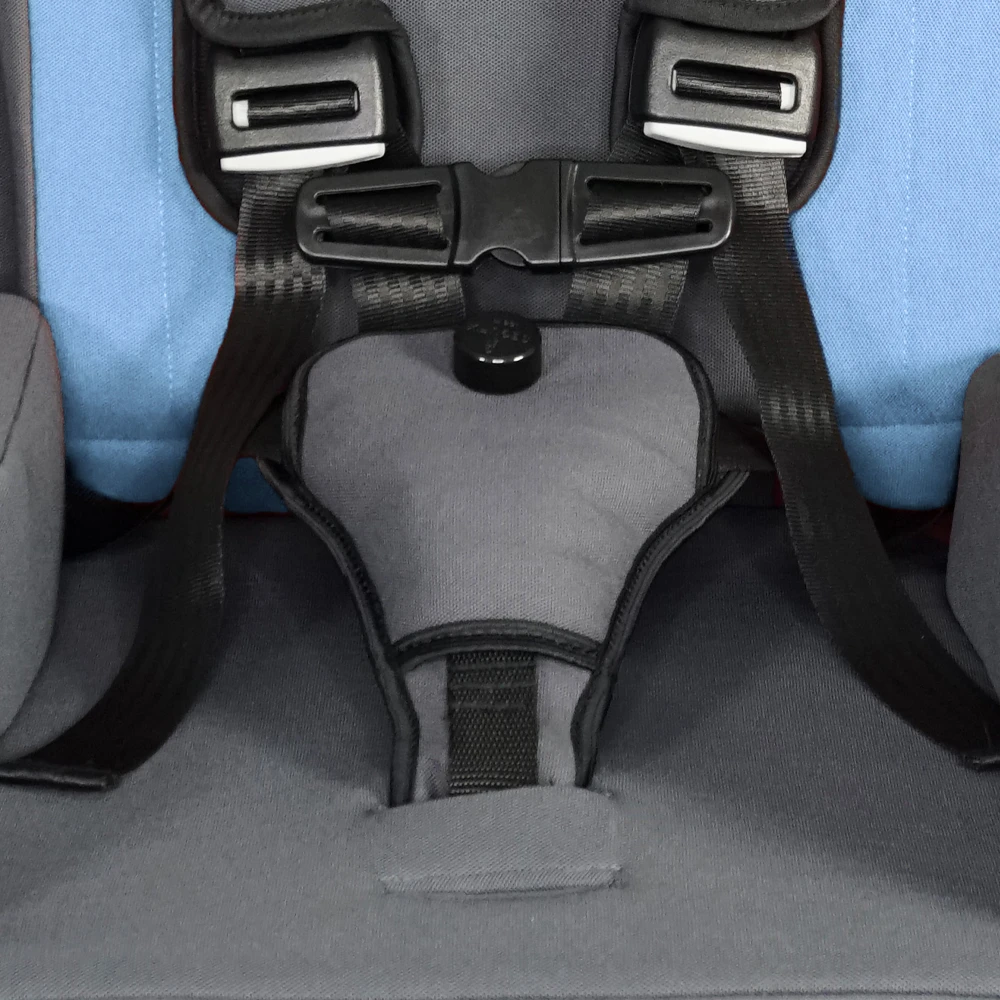

Crotch Pad with Magnetic Lock — Crotch pad with magnetic lock to help prevent the occupant from unbuckling themself.

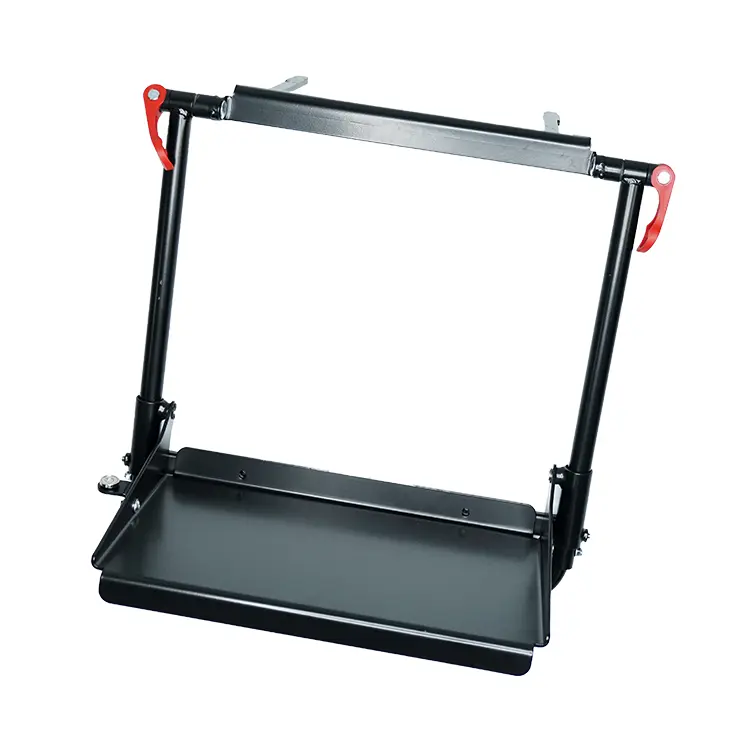

Footrest, foldable (height and angle adjustable).

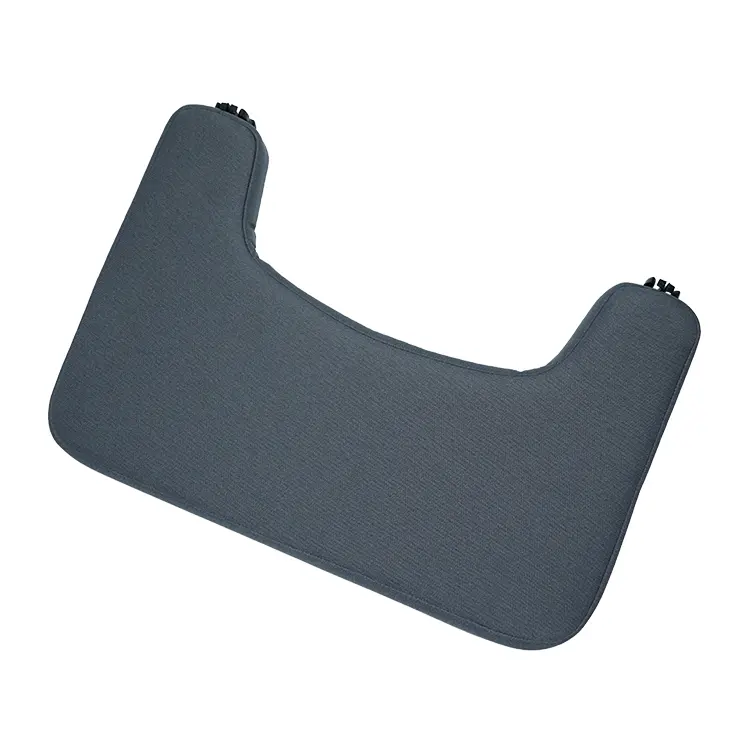

Table — Armrests are required for fitting.

Second / Additional Belt Guide — Second / additional belt guide to enable fitting of belt to either side.

How To Video Guides

Please be advised, these video guides are designed to be a visual aid used in conjunction with your user manual. They are NOT a substitute for reading the manual / manuals.
