Postural Seating Products
Swirl® Chassis Measurements
All sizes and weights are given as a guide. Tendercare Ltd reserves the right to amend specifications at any time as part of their product development program.
Specifications | Swirl Chassis |
| Seat Tilt | 0 - 40 degrees |
| Adjustable Push Handle Range (Minimum - Maximum) | 605 - 1125mm |
| Frame Colour | Anthracite |
| Weight of Frame | 13.4kg |
| Maximum Weight Capacity (i.e. the seat unit, the weight of the occupant, their accessoriese.g medical equipment and any accesories of the parent e.g. shopping) | 50kg |
| Maximum Seat Width of Seating System | 430mm |
| Maximum Footrest Width of Seating System | 320mm |

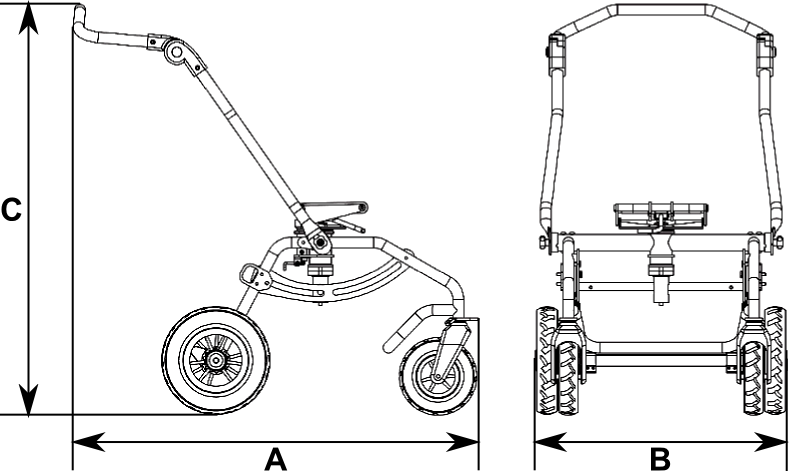

External Dimensions | Swirl Chassis | Swirl Chassis Folded |
| Dimension A Length | 985mm | 622mm |
| Dimension B Width | 583mm | 583mm |
| Dimension C Height | 984mm | 546mm |
