Snappi® Pushchair Measurements

All sizes and weights are given as a guide. Tendercare Ltd reserves the right to amend specifications at any time as part of their product development program.


Snappi Size 1 With Seat Minimiser Fitted

Snappi Size 1

Snappi Size 2

Seat Depth 140-295mm 195-295mm 290-390mm
Seat Width 170-290mm 170-290mm 250-350mm
Backrest Height 475-675mm 500-675mm 590-760mm
Footrest Height 120-280mm 150-280mm 215-360mm
Seat Back Recline 90-135 degrees 90-135 degrees 90-135 degrees
Seat Tilt 0-40 degrees 0-40 degrees 0-35 degrees
Seat Plane to Floor Height (when tilt in space is at 90 degrees) 480mm 480mm 480mm
Adjustable Push Handle Range (Min - Max) 700-1100mm 700-1100mm 630-1185mm
Diameter of Front Swivelling Castor 190mm 190mm 190mm
Diameter of Rear Wheel 250mm 250mm 250mm
Folded Buggy (W x L x H) 571 x 771 x 573mm 571 x 771 x 573mm 684 x 798 x 560mm
Unfolded Buggy (W x L x H) 571 x 944 x 992mm 571 x 944 x 992mm 684 x 1052 x 998mm
Weight 19.5kg 19kg 22kg
Maximum Weight Capacity (i.e. the weight of the occupant, their accessories
e.g medical equipment and any accessories of the parent e.g. shopping)
40kg 40kg 40kg

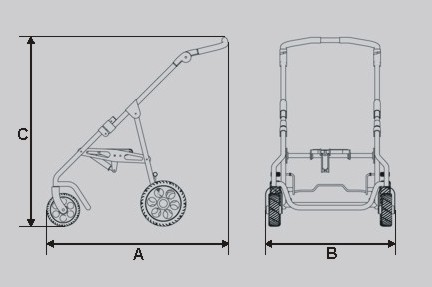

External Dimensions

Snappi Size 1 and Snappi Size 1 With Seat Minimiser

Snappi Size 2

Dim A (Length) 944mm (771mm folded) 960mm (798mm folded)
Dim B (Width) 571mm (571mm folded) 684mm (571mm folded)
Dim C (Height) 992mm (573mm folded) 998mm (560mm folded)


Snappi Pushchair
